26 | Construindo um Ambiente ISP Multivendor em Lab: PPPOE + CGNAT, BGP, IX e Políticas de Roteamento etc.

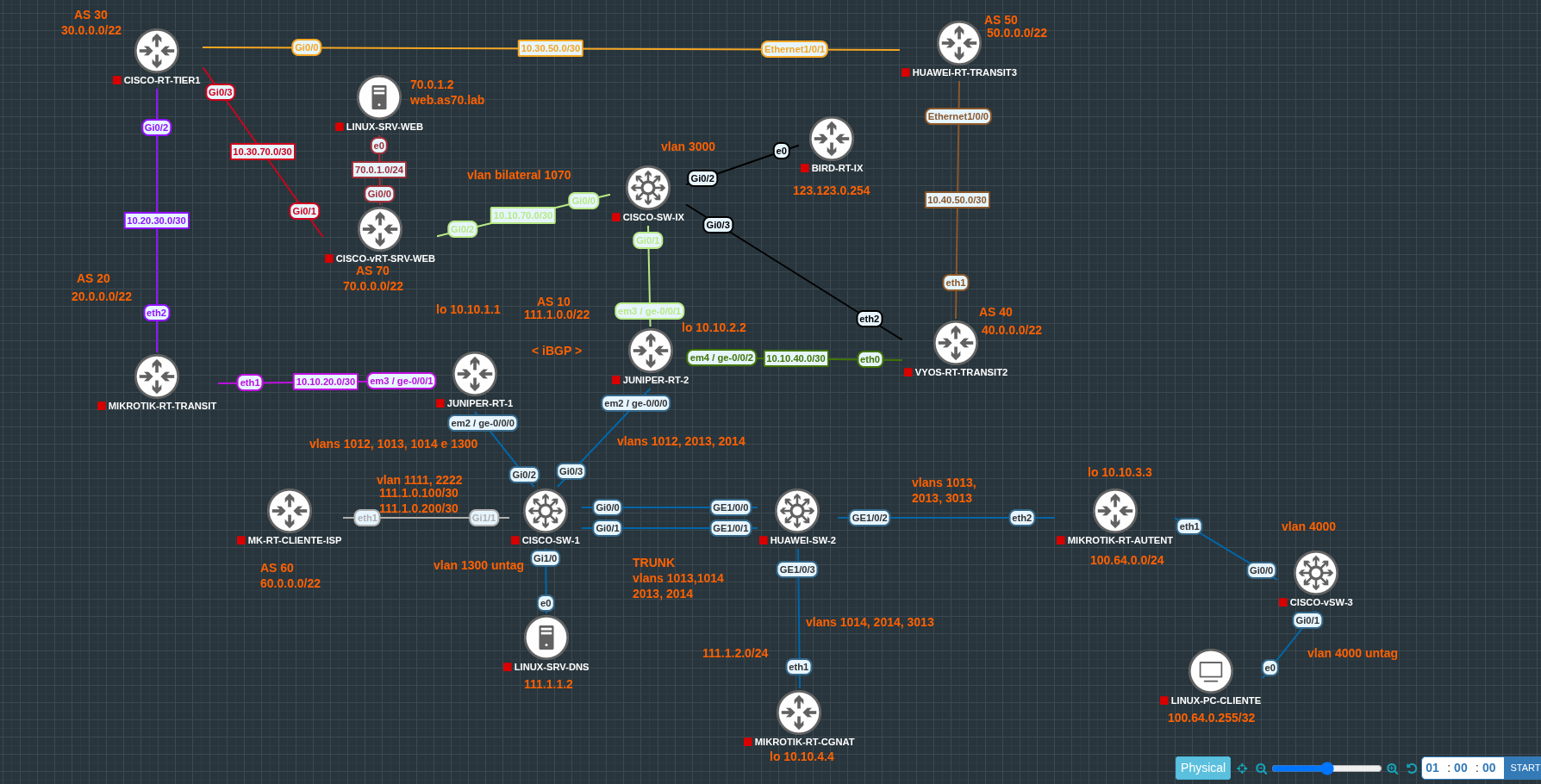

O laboratório da vez foi simulando um ambiente ISP real. Neste, realizo configurações desde vlans até politicas de roteamento.

Não explicarei em detalhes o processo, mas gravei esse video de 2h configurando na integra e postei no Youtube.

Segue abaixo informações das imagens utilizadas e todas as configurações.

Imagens

PC-CLIENTE | linux-debian-10

WEB SERVER, BIRD, DNS SERVER | linux-ubuntu-server-20.04-lts

ROTEADORES CISCO | viosl2-adventerprisek9-m.ssa.high_iron_20200929

ROTEADORES MIKROTIK | chr-6.49.10-lts e chr-7.18.2

ROTEADOR HUAWEI | huaweine40e-ne40e

ROTEADORES JUNIPER | vmx-14.1R4.8-domestic

ROTEADOR VYOS | vyos-1.4.0-rolling-amd64-202204040643

SWITCH HUAWEI | huaweice12800-ce12800

SWITCHES CISCO | vios-adventerprisek9-m.SPA.159-3.M6

Todas as imagens foram adquiridas por meio do ishare2 (https://ishare2.sh/)

Configurações

MIKROTIK-CGNAT

/interface bridge add name=loopback
/interface vlan add interface=ether1 name=ptp-autent vlan-id=3013
/interface vlan add interface=ether1 name=ptp-r1 vlan-id=1014
/interface vlan add interface=ether1 name=ptp-r2 vlan-id=2014
/routing bgp instance set default as=10
/ip address add address=10.10.14.2/30 interface=ptp-r1 network=10.10.14.0
/ip address add address=10.10.24.2/30 interface=ptp-r2 network=10.10.24.0
/ip address add address=10.10.34.2/30 interface=ptp-autent network=10.10.34.0
/ip address add address=10.10.4.4 interface=loopback network=10.10.4.4
/ip firewall filter add action=fasttrack-connection chain=forward connection-state=established,related
/ip firewall filter add action=accept chain=forward connection-state=established,related
/ip firewall nat add action=jump chain=srcnat jump-target=CGNAT_0 src-address=100.64.0.0/24
/ip firewall nat add action=netmap chain=CGNAT_0 protocol=tcp src-address=100.64.0.0/24 to-addresses=111.1.2.0/24 to-ports=1024-3039
/ip firewall nat add action=netmap chain=CGNAT_0 protocol=udp src-address=100.64.0.0/24 to-addresses=111.1.2.0/24 to-ports=1024-3039
/ip firewall nat add action=netmap chain=CGNAT_0 src-address=100.64.0.0/24 to-addresses=111.1.2.0/24
/ip route add distance=1 dst-address=111.1.2.0/24 type=blackhole
/routing bgp network add network=111.1.2.0/24
/routing bgp peer add in-filter=IN-DEFAULT name=ibgp-rt1 out-filter=OUT-PREFIX remote-address=10.10.14.1 remote-as=10
/routing bgp peer add in-filter=IN2-DEFAULT name=ibgp-rt2 out-filter=OUT-PREFIX remote-address=10.10.24.1 remote-as=10
/routing bgp peer add in-filter=IN name=ibgp-autent out-filter=OUT-DISCARD remote-address=10.10.34.1 remote-as=10
/routing filter add action=accept chain=IN prefix=100.64.0.0/24
/routing filter add action=discard chain=IN
/routing filter add action=accept chain=OUT-PREFIX prefix=111.1.2.0/24
/routing filter add action=discard chain=OUT-PREFIX
/routing filter add action=accept chain=IN-DEFAULT prefix=0.0.0.0/0 set-bgp-local-pref=110
/routing filter add action=discard chain=IN-DEFAULT
/routing filter add action=accept chain=IN2-DEFAULT prefix=0.0.0.0/0
/routing filter add action=discard chain=IN2-DEFAULT
/routing filter add action=discard chain=OUT-DISCARD
/system identity set name=CGNAT

CISCO-SW-1

hostname SW-1
!
vlan 1012
 name PTP-RTS
!
vlan 1013
 name PTP-RT1-AUTENT
!
vlan 1014
 name PTP-RT1-CGNAT
!
vlan 1111
 name PTP-RT1-CLIENTE
!
vlan 1300
 name PTP-RT1-SERVERS
!
vlan 2013
 name PTP-RT2-AUTENT
!
vlan 2014
 name PTP-RT2-CGNAT
!
vlan 2222
 name PTP-RT2-CLIENTE
!
!
interface Port-channel1
 no shutdown
 switchport trunk allowed vlan 1013,1014,2013,2014
 switchport trunk encapsulation dot1q
 switchport mode trunk
!
interface GigabitEthernet0/0
 no shutdown
 switchport trunk allowed vlan 1013,1014,2013,2014
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
 channel-group 1 mode active
!
interface GigabitEthernet0/1
 no shutdown
 switchport trunk allowed vlan 1013,1014,2013,2014
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
 channel-group 1 mode active
!
interface GigabitEthernet0/2
 no shutdown
 description PTP-RT1
 switchport trunk allowed vlan 1012-1014,1111,1300
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!
interface GigabitEthernet0/3
 no shutdown
 description PTP-RT2
 switchport trunk allowed vlan 1012,2013,2014,2222
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!
interface GigabitEthernet1/0
 no shutdown
 description SERVER-DNS
 switchport access vlan 1300
 switchport mode access
 negotiation auto
!
interface GigabitEthernet1/1
 no shutdown
 description PTP-CLIENTE
 switchport trunk allowed vlan 1111,2222
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!

HUAWEI-SW-2

sysname SW-2
#
vlan batch 1013 to 1014 2013 to 2014 3013
#
interface Eth-Trunk1
 mode lacp-static
 port link-type trunk
 port trunk allow-pass vlan 1013 to 1014 2013 to 2014
#
interface GE1/0/0
 undo shutdown
 eth-trunk 1
#
interface GE1/0/1
 undo shutdown
 eth-trunk 1
#
interface GE1/0/2
 description AUTENT
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 1013 2013 3013
#
interface GE1/0/3
 description CGNAT
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 1014 2014 3013
#
interface GE1/0/4
 description CLIENTE-PPPOE
 undo shutdown
 port default vlan 4000
#

JUNIPER-RT1-AS10

set system host-name RT1-AS10
set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 unit 1012 vlan-id 1012
set interfaces ge-0/0/0 unit 1012 family inet address 10.10.12.1/30
set interfaces ge-0/0/0 unit 1013 vlan-id 1013
set interfaces ge-0/0/0 unit 1013 family inet address 10.10.13.1/30
set interfaces ge-0/0/0 unit 1014 vlan-id 1014
set interfaces ge-0/0/0 unit 1014 family inet address 10.10.14.1/30
set interfaces ge-0/0/0 unit 1111 vlan-id 1111
set interfaces ge-0/0/0 unit 1111 family inet address 111.1.0.101/30
set interfaces ge-0/0/0 unit 1300 vlan-id 1300
set interfaces ge-0/0/0 unit 1300 family inet address 111.1.1.1/24
set interfaces ge-0/0/1 unit 0 description PTP-AS20
set interfaces ge-0/0/1 unit 0 family inet address 10.10.20.1/30
set routing-options static route 111.1.0.0/22 discard
set routing-options generate route 0.0.0.0/0 discard
set routing-options autonomous-system 10
set protocols bgp group UPSTREAM neighbor 10.10.20.2 import IMPORT-ALL
set protocols bgp group UPSTREAM neighbor 10.10.20.2 export EXPORT-UPSTREAM
set protocols bgp group UPSTREAM neighbor 10.10.20.2 peer-as 20
set protocols bgp group CLIENTES neighbor 111.1.0.102 import IMPORT-CLIENTE-60
set protocols bgp group CLIENTES neighbor 111.1.0.102 export EXPORT-DEFAULT-ROUTE+FULL
set protocols bgp group CLIENTES neighbor 111.1.0.102 peer-as 60
set protocols bgp group IBGP neighbor 10.10.12.2 description PTP-RT2-AS10
set protocols bgp group IBGP neighbor 10.10.12.2 import IMPORT-ALL
set protocols bgp group IBGP neighbor 10.10.12.2 export EXPORT-IBGP-ALL
set protocols bgp group IBGP neighbor 10.10.12.2 peer-as 10
set protocols bgp group IBGP neighbor 10.10.13.2 description AUTENT
set protocols bgp group IBGP neighbor 10.10.13.2 import DROP-ALL
set protocols bgp group IBGP neighbor 10.10.13.2 export EXPORT-DEFAULT-ROUTE
set protocols bgp group IBGP neighbor 10.10.13.2 peer-as 10
set protocols bgp group IBGP neighbor 10.10.14.2 description CGNAT
set protocols bgp group IBGP neighbor 10.10.14.2 import IMPORT-PRX-CGNAT
set protocols bgp group IBGP neighbor 10.10.14.2 export EXPORT-DEFAULT-ROUTE
set protocols bgp group IBGP neighbor 10.10.14.2 peer-as 10
set policy-options policy-statement DROP-ALL term reject then reject
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term 1 then accept
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term reject then reject
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term 1 from route-filter 0.0.0.0/0 upto /24
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term 1 then accept
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term reject then reject
set policy-options policy-statement EXPORT-IBGP-ALL term 1 from protocol bgp
set policy-options policy-statement EXPORT-IBGP-ALL term 1 then next-hop self
set policy-options policy-statement EXPORT-IBGP-ALL term 1 then accept
set policy-options policy-statement EXPORT-IBGP-ALL term 2 from route-filter 111.1.0.0/22 upto /24
set policy-options policy-statement EXPORT-IBGP-ALL term 2 then accept
set policy-options policy-statement EXPORT-IBGP-ALL term reject then reject
set policy-options policy-statement EXPORT-UPSTREAM term 1 from route-filter 111.1.0.0/22 upto /24
set policy-options policy-statement EXPORT-UPSTREAM term 1 then accept
set policy-options policy-statement EXPORT-UPSTREAM term 2 from community CLIENTE-60
set policy-options policy-statement EXPORT-UPSTREAM term 2 then accept
set policy-options policy-statement EXPORT-UPSTREAM term reject then reject
set policy-options policy-statement IMPORT-ALL term 1 from protocol bgp
set policy-options policy-statement IMPORT-ALL term 1 then accept
set policy-options policy-statement IMPORT-ALL term reject then reject
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 from as-path CLIENTE-AS60
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 then community set CLIENTE-60
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 then accept
set policy-options policy-statement IMPORT-CLIENTE-60 term reject then reject
set policy-options policy-statement IMPORT-PRX-CGNAT term 1 from route-filter 111.1.2.0/24 exact
set policy-options policy-statement IMPORT-PRX-CGNAT term 1 then accept
set policy-options policy-statement IMPORT-PRX-CGNAT term reject then reject
set policy-options community CLIENTE-60 members 10:60
set policy-options as-path CLIENTE-AS60 ".*60$"

JUNIPER-RT2-AS10

set system host-name RT2-AS10
set interfaces ge-0/0/0 vlan-tagging
set interfaces ge-0/0/0 unit 1012 vlan-id 1012
set interfaces ge-0/0/0 unit 1012 family inet address 10.10.12.2/30
set interfaces ge-0/0/0 unit 2013 vlan-id 2013
set interfaces ge-0/0/0 unit 2013 family inet address 10.10.23.1/30
set interfaces ge-0/0/0 unit 2014 vlan-id 2014
set interfaces ge-0/0/0 unit 2014 family inet address 10.10.24.1/30
set interfaces ge-0/0/0 unit 2222 vlan-id 2222
set interfaces ge-0/0/0 unit 2222 family inet address 111.1.0.201/30
set interfaces ge-0/0/1 vlan-tagging
set interfaces ge-0/0/1 unit 1070 description BILATERAL-AS70
set interfaces ge-0/0/1 unit 1070 vlan-id 1070
set interfaces ge-0/0/1 unit 1070 family inet address 10.10.70.1/30
set interfaces ge-0/0/1 unit 3000 description IX-RS
set interfaces ge-0/0/1 unit 3000 vlan-id 3000
set interfaces ge-0/0/1 unit 3000 family inet address 123.123.0.10/24
set interfaces ge-0/0/2 unit 0 description PTP-AS40
set interfaces ge-0/0/2 unit 0 family inet address 10.10.40.1/30
set routing-options generate route 0.0.0.0/0 discard
set routing-options autonomous-system 10
set protocols bgp group CLIENTES neighbor 111.1.0.202 import IMPORT-CLIENTE-60
set protocols bgp group CLIENTES neighbor 111.1.0.202 export EXPORT-DEFAULT-ROUTE+FULL
set protocols bgp group CLIENTES neighbor 111.1.0.202 peer-as 60
set protocols bgp group UPSTREAM neighbor 123.123.0.254 import IMPORT-IX-ALL
set protocols bgp group UPSTREAM neighbor 123.123.0.254 export EXPORT-AS10-IX
set protocols bgp group UPSTREAM neighbor 123.123.0.254 peer-as 123
set protocols bgp group UPSTREAM neighbor 10.10.70.2 import IMPORT-AS70-IX
set protocols bgp group UPSTREAM neighbor 10.10.70.2 export EXPORT-AS10-IX
set protocols bgp group UPSTREAM neighbor 10.10.70.2 peer-as 70
set protocols bgp group UPSTREAM neighbor 10.10.40.2 import IMPORT-ALL
set protocols bgp group UPSTREAM neighbor 10.10.40.2 export EXPORT-UPSTREAM
set protocols bgp group UPSTREAM neighbor 10.10.40.2 peer-as 40
set protocols bgp group IBGP neighbor 10.10.12.1 import IMPORT-ALL
set protocols bgp group IBGP neighbor 10.10.12.1 export EXPORT-IBGP-ALL
set protocols bgp group IBGP neighbor 10.10.12.1 peer-as 10
set protocols bgp group IBGP neighbor 10.10.23.2 import DROP-ALL
set protocols bgp group IBGP neighbor 10.10.23.2 export EXPORT-DEFAULT-ROUTE
set protocols bgp group IBGP neighbor 10.10.23.2 peer-as 10
set protocols bgp group IBGP neighbor 10.10.24.2 import IMPORT-PRX-CGNAT
set protocols bgp group IBGP neighbor 10.10.24.2 export EXPORT-DEFAULT-ROUTE
set protocols bgp group IBGP neighbor 10.10.24.2 peer-as 10
set policy-options policy-statement DROP-ALL term reject then reject
set policy-options policy-statement EXPORT-AS10-IX term 1 from route-filter 111.1.0.0/22 upto /24
set policy-options policy-statement EXPORT-AS10-IX term 1 then accept
set policy-options policy-statement EXPORT-AS10-IX term reject then reject
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term 1 from route-filter 0.0.0.0/0 exact
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term 1 then accept
set policy-options policy-statement EXPORT-DEFAULT-ROUTE term reject then reject
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term 1 from route-filter 0.0.0.0/0 upto /24
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term 1 then accept
set policy-options policy-statement EXPORT-DEFAULT-ROUTE+FULL term reject then reject
set policy-options policy-statement EXPORT-IBGP-ALL term 1 from protocol bgp
set policy-options policy-statement EXPORT-IBGP-ALL term 1 then next-hop self
set policy-options policy-statement EXPORT-IBGP-ALL term 1 then accept
set policy-options policy-statement EXPORT-IBGP-ALL term 2 from route-filter 111.1.0.0/22 upto /24
set policy-options policy-statement EXPORT-IBGP-ALL term 2 then accept
set policy-options policy-statement EXPORT-IBGP-ALL term reject then reject
set policy-options policy-statement EXPORT-UPSTREAM term 1 from route-filter 111.1.0.0/22 upto /24
set policy-options policy-statement EXPORT-UPSTREAM term 1 then accept
set policy-options policy-statement EXPORT-UPSTREAM term 2 from community CLIENTE-60
set policy-options policy-statement EXPORT-UPSTREAM term 2 then accept
set policy-options policy-statement EXPORT-UPSTREAM term reject then reject
set policy-options policy-statement IMPORT-ALL term 1 from protocol bgp
set policy-options policy-statement IMPORT-ALL term 1 then accept
set policy-options policy-statement IMPORT-ALL term reject then reject
set policy-options policy-statement IMPORT-AS70-IX term 1 from protocol bgp
set policy-options policy-statement IMPORT-AS70-IX term 1 from route-filter 70.0.0.0/22 upto /24
set policy-options policy-statement IMPORT-AS70-IX term 1 then local-preference 150
set policy-options policy-statement IMPORT-AS70-IX term 1 then community set AS70-IX
set policy-options policy-statement IMPORT-AS70-IX term 1 then accept
set policy-options policy-statement IMPORT-AS70-IX term reject then reject
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 from as-path CLIENTE-AS60
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 then community set CLIENTE-60
set policy-options policy-statement IMPORT-CLIENTE-60 term 1 then accept
set policy-options policy-statement IMPORT-CLIENTE-60 term reject then reject
set policy-options policy-statement IMPORT-IX-ALL term 1 from protocol bgp
set policy-options policy-statement IMPORT-IX-ALL term 1 then local-preference 120
set policy-options policy-statement IMPORT-IX-ALL term 1 then community set IX-ALL
set policy-options policy-statement IMPORT-IX-ALL term 1 then accept
set policy-options policy-statement IMPORT-IX-ALL term reject then reject
set policy-options policy-statement IMPORT-PRX-CGNAT term 1 from route-filter 111.1.2.0/24 exact
set policy-options policy-statement IMPORT-PRX-CGNAT term 1 then accept
set policy-options policy-statement IMPORT-PRX-CGNAT term reject then reject
set policy-options community AS70-IX members 10:1070
set policy-options community CLIENTE-60 members 10:60
set policy-options community IX-ALL members 10:123
set policy-options as-path CLIENTE-AS60 ".*60$"

LINUX-SRV-DNS

ip add add 111.1.1.2/24 dev eth0
ip route add default via 111.1.1.1 dev eth0
nano /etc/hosts
70.0.1.2   web.as70.lab
systemctl restart dnsmasq.service

CISCO-AS30

hostname RT-AS30
!
interface Loopback0
 ip address 30.0.1.1 255.255.255.0
!
interface GigabitEthernet0/0
 ip address 10.30.50.1 255.255.255.252
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/1
 no ip address
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2
 ip address 10.20.30.2 255.255.255.252
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/3
 ip address 10.30.70.1 255.255.255.252
 duplex auto
 speed auto
 media-type rj45
!
router bgp 30
 bgp log-neighbor-changes
 network 30.0.0.0 mask 255.255.252.0
 network 30.0.1.0 mask 255.255.255.0
 neighbor 10.20.30.1 remote-as 20
 neighbor 10.20.30.1 soft-reconfiguration inbound
 neighbor 10.30.50.2 remote-as 50
 neighbor 10.30.50.2 soft-reconfiguration inbound
 neighbor 10.30.70.2 remote-as 70
 neighbor 10.30.70.2 soft-reconfiguration inbound
!
ip route 30.0.0.0 255.255.252.0 Null0

VYOS-AS40

set interfaces ethernet eth0 address '10.10.40.2/30'
set interfaces ethernet eth1 address '10.40.50.1/30'
set interfaces ethernet eth2 vif 3000 address '123.123.0.40/24'
set interfaces loopback lo address '40.0.1.1/24'
set policy prefix-list ALL rule 10 action 'permit'
set policy prefix-list ALL rule 10 le '24'
set policy prefix-list ALL rule 10 prefix '0.0.0.0/0'
set policy prefix-list PRX-AS40 rule 10 action 'permit'
set policy prefix-list PRX-AS40 rule 10 le '24'
set policy prefix-list PRX-AS40 rule 10 prefix '40.0.0.0/22'
set policy route-map EXPORT-ALL rule 10 action 'permit'
set policy route-map EXPORT-ALL rule 10 match ip address prefix-list 'ALL'
set policy route-map EXPORT-AS40 rule 10 action 'permit'
set policy route-map EXPORT-AS40 rule 10 match ip address prefix-list 'PRX-AS40'
set policy route-map IMPORT-ALL rule 10 action 'permit'
set policy route-map IMPORT-ALL rule 10 match ip address prefix-list 'ALL'
set protocols bgp address-family ipv4-unicast network 40.0.0.0/22
set protocols bgp address-family ipv4-unicast network 40.0.1.0/24
set protocols bgp local-as '40'
set protocols bgp neighbor 10.10.40.1 address-family ipv4-unicast route-map export 'EXPORT-ALL'
set protocols bgp neighbor 10.10.40.1 address-family ipv4-unicast route-map import 'IMPORT-ALL'
set protocols bgp neighbor 10.10.40.1 address-family ipv4-unicast soft-reconfiguration inbound
set protocols bgp neighbor 10.10.40.1 remote-as '10'
set protocols bgp neighbor 10.40.50.2 address-family ipv4-unicast route-map export 'EXPORT-ALL'
set protocols bgp neighbor 10.40.50.2 address-family ipv4-unicast route-map import 'IMPORT-ALL'
set protocols bgp neighbor 10.40.50.2 address-family ipv4-unicast soft-reconfiguration inbound
set protocols bgp neighbor 10.40.50.2 remote-as '50'
set protocols bgp neighbor 123.123.0.254 address-family ipv4-unicast route-map export 'EXPORT-AS40'
set protocols bgp neighbor 123.123.0.254 address-family ipv4-unicast route-map import 'IMPORT-ALL'
set protocols bgp neighbor 123.123.0.254 address-family ipv4-unicast soft-reconfiguration inbound
set protocols bgp neighbor 123.123.0.254 remote-as '123'
set protocols static route 40.0.0.0/22 blackhole
set system host-name 'RT-AS40'

CISCO-SW-IX

hostname SW-IX
!
vlan 1070
 name BILATERAL-AS10XAS70
!
vlan 3000
 name VLAN-IX-RT-RS
!
interface GigabitEthernet0/0
 no shutdown
 description AS30
 switchport trunk allowed vlan 1070,3000
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!
interface GigabitEthernet0/1
 no shutdown
 description AS10
 switchport trunk allowed vlan 1070,3000
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!
interface GigabitEthernet0/2
 no shutdown
 description RS
 switchport access vlan 3000
 switchport mode access
 negotiation auto
!
interface GigabitEthernet0/3
 no shutdown
 description AS40
 switchport trunk allowed vlan 3000
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!

HUAWEI-AS50

sysname RT-AS50
#
interface Ethernet1/0/0
 description PTP-AS40
 undo shutdown
 ip address 10.40.50.2 255.255.255.252
 undo dcn
 undo dcn mode vlan
#
interface Ethernet1/0/1
 description PTP-AS30
 undo shutdown
 ip address 10.30.50.2 255.255.255.252
 undo dcn
 undo dcn mode vlan
#
interface LoopBack0
 ip address 50.0.1.1 255.255.255.255
#
interface NULL0
#
bgp 50
 peer 10.30.50.1 as-number 30
 peer 10.30.50.1 description AS30
 peer 10.40.50.1 as-number 40
 peer 10.40.50.1 description AS40
 #
 ipv4-family unicast
  undo synchronization
  network 50.0.0.0 255.255.252.0
  peer 10.30.50.1 enable
  peer 10.30.50.1 route-policy ALL import
  peer 10.30.50.1 route-policy EXPORT-ALL export
  peer 10.40.50.1 enable
  peer 10.40.50.1 route-policy ALL import
  peer 10.40.50.1 route-policy EXPORT-ALL export
#
undo dcn
#
route-policy ALL permit node 10
 if-match ip-prefix ALL
#
route-policy EXPORT-ALL permit node 10
 if-match ip-prefix ALL
#
ip ip-prefix ALL index 10 permit 0.0.0.0 0 less-equal 24
#
ip route-static 50.0.0.0 255.255.252.0 NULL0
#

MIKROTIK-AUTENTICADOR

/interface bridge add name=loopback
/interface vlan add interface=ether1 name=pppoe vlan-id=4000
/interface vlan add interface=ether2 name=ptp-cgnat vlan-id=3013
/interface vlan add interface=ether2 name=ptp-rt1 vlan-id=1013
/interface vlan add interface=ether2 name=ptp-rt2 vlan-id=2013
/ip pool add name=cliente-pppoe ranges=100.64.0.1-100.64.0.10
/ppp profile set *0 dns-server=111.1.1.2 local-address=10.10.3.3 remote-address=cliente-pppoe
/routing bgp instance set default as=10
/ip firewall connection tracking set enabled=no
/interface pppoe-server server add disabled=no interface=pppoe one-session-per-host=yes service-name=pppoe-server
/ip address add address=10.10.13.2/30 interface=ptp-rt1 network=10.10.13.0
/ip address add address=10.10.23.2/30 interface=ptp-rt2 network=10.10.23.0
/ip address add address=10.10.34.1/30 interface=ptp-cgnat network=10.10.34.0
/ip address add address=10.10.3.3 interface=loopback network=10.10.3.3
/ip route add distance=1 gateway=10.10.34.2 routing-mark=CGNAT
/ip route add distance=1 dst-address=100.64.0.0/24 type=blackhole
/ip route rule add action=lookup-only-in-table src-address=100.64.0.0/24 table=CGNAT
/ppp secret add name=cliente password=cliente service=pppoe
/routing bgp network add network=100.64.0.0/24
/routing bgp peer add in-filter=IN-DISCARD name=ibgp-cgnat out-filter=OUT remote-address=10.10.34.2 remote-as=10
/routing bgp peer add in-filter=INPUT-DEFAULT name=ibgp-rt1 out-filter=OUT-DISCARD remote-address=10.10.13.1 remote-as=10
/routing bgp peer add in-filter=INPUT2-DEFAULT name=ibgp-rt1 out-filter=OUT-DISCARD remote-address=10.10.23.1 remote-as=10
/routing filter add action=accept chain=INPUT-DEFAULT prefix=0.0.0.0/0 set-bgp-local-pref=110
/routing filter add action=discard chain=INPUT-DEFAULT
/routing filter add action=accept chain=INPUT2-DEFAULT prefix=0.0.0.0/0
/routing filter add action=discard chain=INPUT2-DEFAULT
/routing filter add action=discard chain=IN-DISCARD
/routing filter add action=accept chain=OUT prefix=100.64.0.0/24
/routing filter add action=discard chain=OUT
/routing filter add action=discard chain=OUT-DISCARD
/system identity set name=AUTENTIC

MIKROTIK-AS20

/routing bgp template set default as=20 input.filter=IMPORT-ALL output.filter-chain=EXPORT-ALL .network=PRX-AS20
/ip address add address=10.20.30.1/30 interface=ether2 network=10.20.30.0
/ip address add address=10.10.20.2/30 interface=ether1 network=10.10.20.0
/ip address add address=20.0.1.1/24 interface=lo network=20.0.1.0
/ip firewall address-list add list=ALL
/ip firewall address-list add list=PRX-AS20
/ip firewall address-list add address=20.0.0.0/22 list=ALL
/ip firewall address-list add address=20.0.0.0/22 list=PRX-AS20
/ip firewall address-list add address=20.0.1.0/24 list=PRX-AS20
/ip firewall address-list add address=20.0.1.0/24 list=ALL
/ip firewall address-list add address=30.0.0.0/22 list=ALL
/ip firewall address-list add address=30.0.1.0/24 list=ALL
/ip firewall address-list add address=60.0.0.0/22 list=ALL
/ip firewall address-list add address=60.0.1.0/24 list=ALL
/ip firewall address-list add address=111.1.0.0/22 list=ALL
/ip firewall address-list add address=111.1.1.0/24 list=ALL
/ip firewall address-list add address=111.1.2.0/24 list=ALL
/ip firewall address-list add address=70.0.0.0/22 list=ALL
/ip firewall address-list add address=70.0.1.0/24 list=ALL
/ip firewall address-list add address=50.0.0.0/22 list=ALL
/ip firewall address-list add address=50.0.1.0/24 list=ALL
/ip firewall address-list add address=40.0.1.0/24 list=ALL
/ip firewall address-list add address=40.0.0.0/22 list=ALL
/ip route add blackhole dst-address=20.0.0.0/22
/routing bgp connection add local.role=ebgp name=PEER-AS30 remote.address=10.20.30.2 .as=30 templates=default
/routing bgp connection add local.role=ebgp name=PEER-AS10 remote.address=10.10.20.1 .as=10 templates=default
/routing filter rule add chain=IMPORT-ALL rule="if (dst in ALL ) {accept; }"
/routing filter rule add chain=EXPORT-ALL rule="if (dst in ALL ) {accept; }"
/system identity set name=RT-AS20

BIRD-IX

ip add add 123.123.0.254/24 dev eth0

nano /etc/bird/bird.conf

protocol bgp peer70 {
description "AS 70";
local as 123;
neighbor 123.123.0.70 as 70;
rs client;
import all;
export all;
}
protocol bgp peer10 {
description "AS 10";
local as 123;
neighbor 123.123.0.10 as 10;
rs client;
import all;
export all;
}
protocol bgp peer40 {
description "AS 40";
local as 123;
neighbor 123.123.0.40 as 40;
rs client;
import all;
export all;
}

systemctl restart bird

birdc

MIKROTIK-AS60

/interface bridge add name=loopback
/interface vlan add interface=ether1 name=PTP-RT1 vlan-id=1111
/interface vlan add interface=ether1 name=PTP-RT2 vlan-id=2222
/routing bgp instance set default as=60
/ip address add address=111.1.0.102/30 interface=PTP-RT1 network=111.1.0.100
/ip address add address=111.1.0.202/30 interface=PTP-RT2 network=111.1.0.200
/ip address add address=60.0.1.1/24 interface=loopback network=60.0.1.0
/ip route add distance=1 dst-address=60.0.0.0/22 type=blackhole
/routing bgp network add network=60.0.0.0/22
/routing bgp network add network=60.0.1.0/24
/routing bgp peer add in-filter=IMPORT-ALL-RT1 name=peer1 out-filter=EXPORT-AS60 remote-address=111.1.0.101 remote-as=10
/routing bgp peer add in-filter=IMPORT-ALL-RT2 name=peer2 out-filter=EXPORT-AS60 remote-address=111.1.0.201 remote-as=10
/routing filter add action=accept chain=IMPORT-ALL-RT1 set-bgp-local-pref=110
/routing filter add action=accept chain=IMPORT-ALL-RT2
/routing filter add chain=EXPORT-AS60 prefix=60.0.0.0/22
/routing filter add chain=EXPORT-AS60 prefix=60.0.1.0/24
/system identity set name=RT-AS60

CISCO-SW-PPPOE

hostname SW-3-PPPOE
!
vlan 4000
!
interface GigabitEthernet0/0
 switchport trunk allowed vlan 4000
 switchport trunk encapsulation dot1q
 switchport mode trunk
 negotiation auto
!
interface GigabitEthernet0/1
 switchport access vlan 4000
 switchport mode access
 negotiation auto
!

CISCO-AS70

hostname RT-AS70
!
ip dhcp pool LAN
 network 70.0.1.0 255.255.255.0
 default-router 70.0.1.1
 dns-server 111.1.1.2
!
no ip domain lookup
!
interface GigabitEthernet0/0
 no shutdown
 description LAN
 ip address 70.0.1.1 255.255.255.0
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/1
 no shutdown
 description PTP-UPSTREAM-AS30
 ip address 10.30.70.2 255.255.255.252
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2
 no shutdown
 no ip address
 duplex auto
 speed auto
 media-type rj45
!
interface GigabitEthernet0/2.1070
 encapsulation dot1Q 1070
 ip address 10.10.70.2 255.255.255.252
!
interface GigabitEthernet0/2.3000
 description IX-RS
 encapsulation dot1Q 3000
 ip address 123.123.0.70 255.255.255.0
!
router bgp 70
 no bgp enforce-first-as
 bgp log-neighbor-changes
 network 70.0.0.0 mask 255.255.252.0
 network 70.0.1.0 mask 255.255.255.0
 neighbor 10.10.70.1 remote-as 10
 neighbor 10.10.70.1 soft-reconfiguration inbound
 neighbor 10.10.70.1 route-map IMPORT-ALL in
 neighbor 10.10.70.1 route-map EXPORT-AS70 out
 neighbor 10.30.70.1 remote-as 30
 neighbor 10.30.70.1 soft-reconfiguration inbound
 neighbor 10.30.70.1 route-map IMPORT-ALL in
 neighbor 10.30.70.1 route-map EXPORT-AS70 out
 neighbor 123.123.0.254 remote-as 123
 neighbor 123.123.0.254 soft-reconfiguration inbound
 neighbor 123.123.0.254 route-map IMPORT-ALL in
 neighbor 123.123.0.254 route-map EXPORT-AS70 out
!
ip route 70.0.0.0 255.255.252.0 Null0
!
ip prefix-list ALL seq 5 permit 0.0.0.0/0 le 24
!
ip prefix-list PRX-AS70 seq 5 permit 70.0.0.0/22 le 24
!
route-map EXPORT-AS70 permit 10
 match ip address prefix-list PRX-AS70
!
route-map IMPORT-ALL permit 10
 match ip address prefix-list ALL

0 0 votos

Article Rating

Inscrever-se

4 Comments

mais antigos

mais recentes Mais votado

Feedbacks embutidos

Ver todos os comentários

房中秘术

1 mês atrás

房中秘术、泡妞把妹、丰胸美体、奇淫巧技！价值十万电子书下载网址：https://www.1199.pw/

Responder

Bulk commenting

Bulk commenting service. 100,000 comments on independent websites for $100 or 1000,000 comments for $500. You can read this comment, it means my bulk sending is successful. Payment account-USDT TRC20：【TLRH8hompAphv4YJQa7Jy4xaXfbgbspEFK】。After payment, contact me via email （helloboy1979@gmail.com），tell me your nickname, email, website URL, and comment content. Bulk sending will be completed within 24 hours. I’ll give you links for each comment.Please contact us after payment is made. We do not respond to inquiries prior to payment. Let’s work with integrity for long-term cooperation.

免费资源下载

真免费！价值万元资源，不要一分钱，网址：https://www.53278.xyz/

益群网

25 dias atrás

益群网：终身分红，逆向推荐，不拉下线，也有钱赚！尖端资源，价值百万，一网打尽，瞬间拥有！多重收益，五五倍增，八级提成，后劲无穷！网址：1199.pw

Imagens

Configurações

Você também pode gostar

07 | Criando um Laboratório de IX / Route Server no PNETLAB

00 | Introdução

12 | DDNS na Cloudflare
